Typical Design Process
Press all the TABS!
In a typical scenario our customer knows what he wants and describe to us. We create 2 documents which describe how the design will be done, tested. We include timescale and costs. Once these documents are approved we start designing the board... (see next Tab)

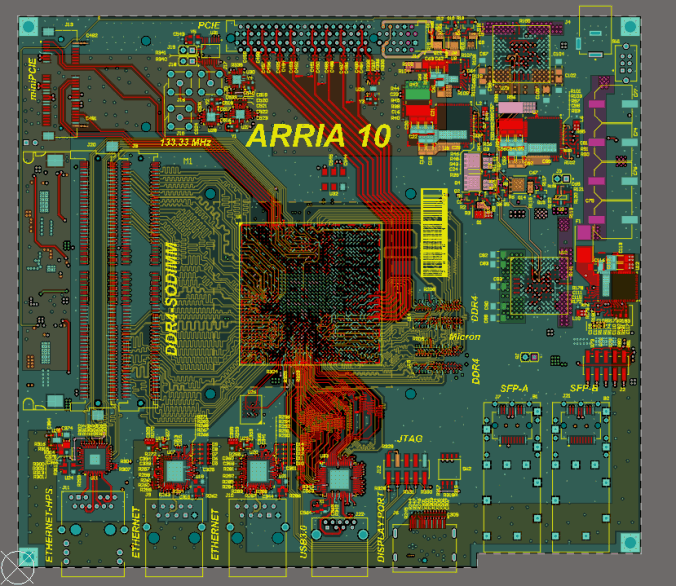

Using specialized software (Altium) we create the schematic and the Printed Circuit Board and the outcome of this phase is the creation of the PCBA Manufacturing files which are sent to our trusted PCBA partners to manufacturing... (see next Tab)

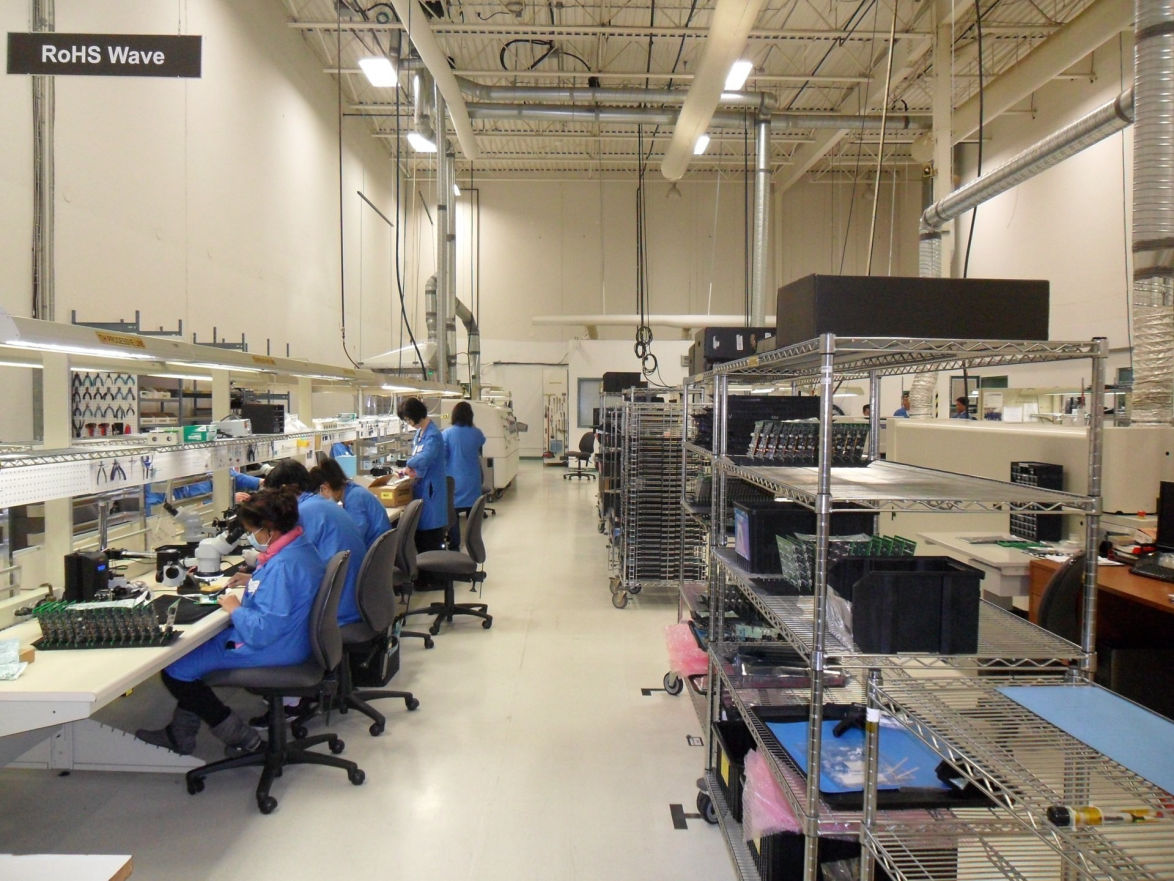

Once we have completed the design, as we said in the previously, we manufacture a few prototypes using a few trusted PCBA houses. We usually receive the board back from them in 15 - 30 days... (see next tab)

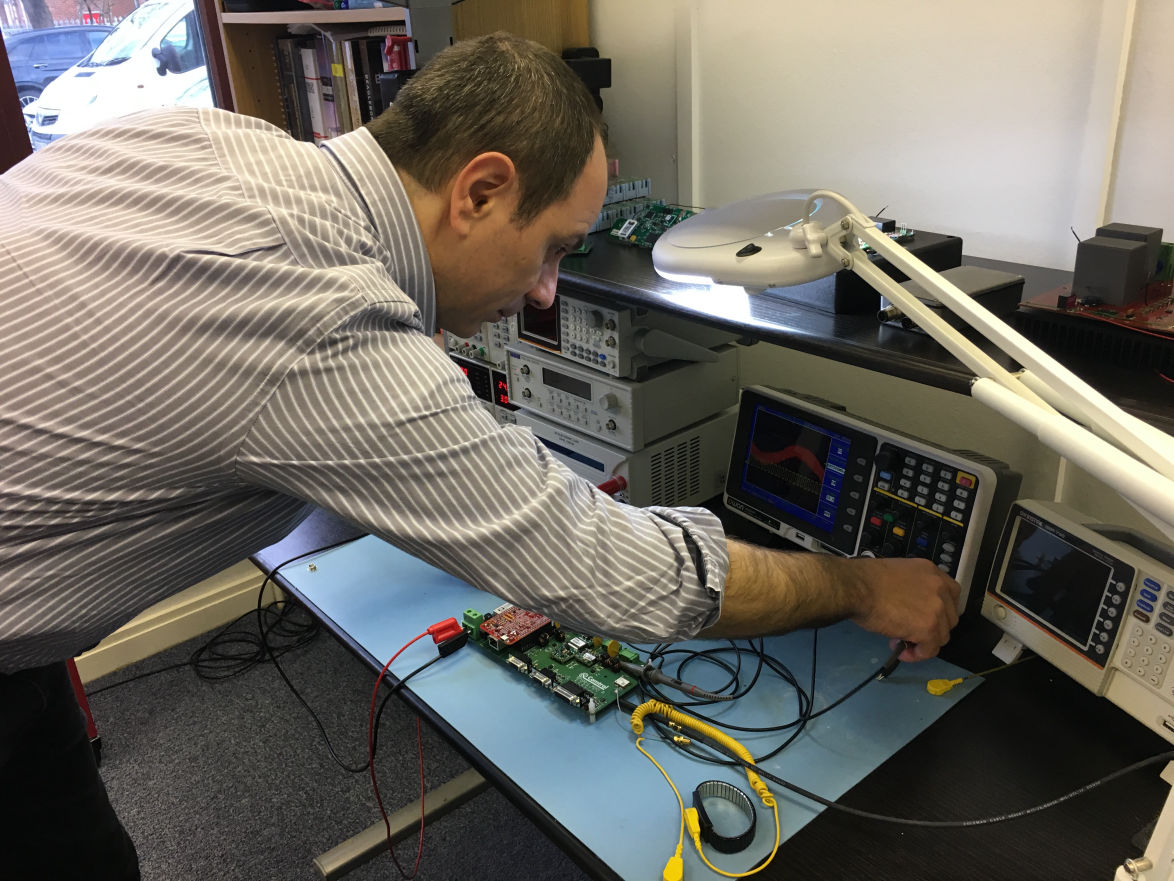

Once we receive the board back from our PCBA subcontractor we start testing our board. This is done according to a prearranged Testing Plan supplied to our customer prior to the beginning of design. We finally ship the prototypes to our customer.
